High-Performing and Truly Customizable
The Bolton Blade 5G OTR Cellular Antenna does not discriminate. It is the ideal cellular antenna for ALL types of vehicles from sedans to pickup trucks to RV’s to 18-wheelers, even ATV/UTV’s.
Unique design cuts through the wind like butter (hence the name) for optimal performance. As you're zooming down the highway, the whistle-free wrap eliminates that annoying whistle that is common among other vehicular antennas. Couple that with its sturdy fiberglass mast, and the antenna won’t bounce around while moving down the road. It stays vertical to send and receive the strongest cell signal.
Terminated with an SMA-Female connector, the antenna can connect to virtually any cellular amplifier or cellular device with external antenna connectivity.
The mounting options for this antenna are insane. You can mount it on the roof, trunk lip, side mirror, toolbox, or you can get a custom mount for your specific truck (sold separately).
Choose the kit that best suits your car, truck, or RV and then pair it with any of our popular vehicle cellular signal boosters, and enjoy stronger cell signal on the go.

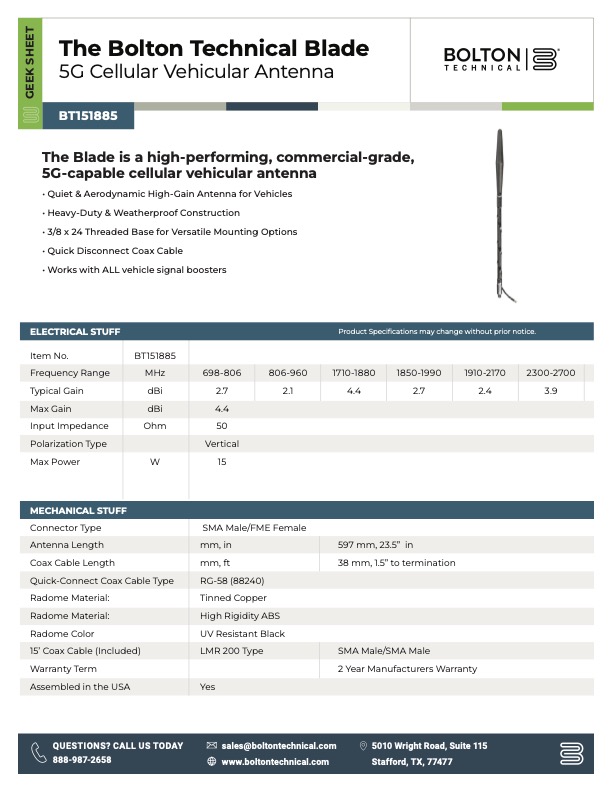

| ELECTRICAL STUFF | |
|---|---|
| Item No. | BT151885 |
| Frequency Range and Typical Gain | 600 MHz - -6.4 dBi, 698-806 MHz - 2.7 dbi, 806-960 MHz - 2.1 dBi, 1710-1880 MHz - 4.4 dBi, 1850-1990 MHz - 2.7 dBi, 1910-2170 MHz - 2.4 dBi, 2300-2700 MHz - 3.9 dBi, 3600-3750 MHz - 2.3 dBi |
| Max Gain | 4.4 dBi |
| Input Impedance | 50 Ohm |
| Polarization Type | Vertical |
| MECHANICAL STUFF | |
| Connector Type | 4M/13ft Coax Cable Extension (Included) LMR®200 Type SMA Male/SMA Male (SMA Female - FME Female Adapter Included) |
| Antenna Length | 597 mm, 23.5 in |
| Coax Cable Length | 38 mm, 1.5" to termination |
| Quick Connect Coax Cable Type | RG-58 (88240) |
| Radome Material | Tinend Copper |
| Radome Material | High Rigidity ABS |
| Radome Color | UV Resistant Black |
| 15' Coax Cable (included) | LMR 200- SMA Male/SMA Male |
| Warranty Term | 2 Years Manufacturer Warranty |
| Assembled in the USA | Yes |
You have questions. We have answers.
If your cell booster’s vehicular antenna is broken, or you want to upgrade to a more powerful antenna capable of greater transmit and receive range, the Blade is a great choice. It’ll work in all signal environments and impress you when you’re in the weakest signal areas.
Yes! The Blade will excel IF your cellular router features a single “external antenna” connection (called SISO). If your device has two “external antenna” connections (called MIMO), telephone or email us and we’ll show you available options.
No! The amazing Blade antenna will work with most any vehicle including sedans, SUV’s, pickup trucks, RV’s ATV/UTV’s and, yes, 18-wheelers. With our broad selection of vehicle-specific antenna mounts, we can help you find the one best suited for your application if you have any questions.
The short coax cable that exits the base of the Blade antenna is terminated with an SMA Female connector. We offer 4M and 6M coax extension cables with the connector needed for your cellular signal booster. Our antenna kits include a 4M coax cable that utilizes either an SMA Male or FME Female connector. If you can’t identify what connector you have on your booster, call or email us and we’ll help out before your purchase.
