All-in-one antenna solution for maximum cellular router performance without the bulk.
The Bolton Dart 5-Antenna Bundle is the perfect cellular router or gateway antenna upgrade kit. With two 5G/4G LTE antennas, two WiFi antennas, and one GNSS antenna, it’s designed to improve performance while reducing bulk.
The cellular antennas cover 600 MHz to 6 GHz to improve LTE and 5G signal reliability with up to 4.8 dBi gain and high efficiency. The dual-band WiFi antennas enhance wireless stability across 2.4, 5.8, and 7.125 GHz frequencies, seamlessly working with legacy and modern WiFi standards. The GNSS antenna ensures reliable tracking and monitoring data through GPS, GLONASS, GALILEO, and BeiDou frequencies. Depending on the signal environment, users can see an increase in performance of 20–30% with the Bolton Dart antennas compared to standard whip antennas.
The cellular and GNSS antennas are fitted with SMA Male connectors, while the WiFi antennas use RP-SMA Male connectors. Compact, flexible, and built to last, each antenna features a rugged design with 360° rotation and a hinged mechanism for easy installation and optimal positioning.

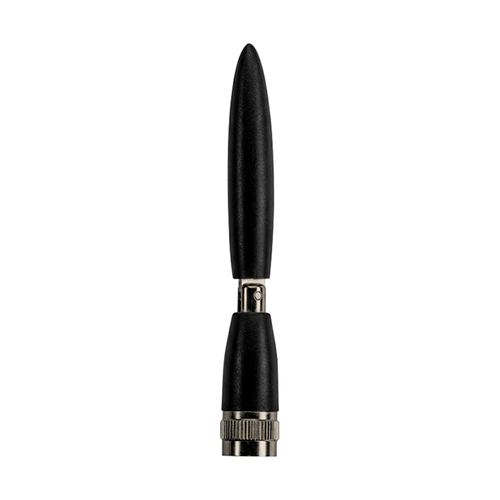

Cellular Antenna
| ELECTRICAL STUFF | |
|---|---|
| Bands | 5G NR/4G - Band 71 4G/3G Band - Band 12,13,14,17,28,29 4G/3G/NB-IoT/Cat M - Band 5,8,18,19,20,26,27 4G/3G/NB-IoT/Cat M - Band 5,8,18,19,20,26,27 4G/3G - Band 1,2,3,4,9,23,25,35, 39,66 4G/3G - Band 7,30,38,40,41 5GNR/4G - Band 22,42,48,77,78,79 LTE5200/Wi-Fi 5800 |
| Frequency (MHz) | 617-698 698-824 824-960 1427-15 1710-22 2300-26 3300-50 5150-59 |
| Efficiency (%) / Bent/Straight |
65.1 / 78.4 76.7 / 75.9 74.5 / 78.3 68.9 / 64.5 63.9 / 55.8 51.3 / 43.0 52.6 / 44.6 35.9 / 25.8 |
| Peak Gain (dBi) / Bent/Straight |
2.64 / 3.11 2.87 / 3.56 2.79 / 3.43 3.35 / 2.72 4.68 / 3.51 4.05 / 2.64 4.58 / 6.12 2.65 / 0.15 |
| Impedance (Ohm) | 50 |
| Polarization | Linear |
| Radiation Pattern | Omnidirectional |
| Max Input Power | 10W |
| MECHANICAL STUFF | |
| Connector Type | SMA (M) |
| Antenna Length | 9.7 x 70.3 cm |
| Weight | 9g |
| Radom Material | PC345 |
| Color | White/Black |
| ENVIRONMENTAL STUFF | |
| Operational Temperature | -40°F to 185°F -40°C to 85°C |
| Storage Temperature | -40°F to 185°F -40°C to 85°C |
WiFi Antenna
| ELECTRICAL STUFF | |
|---|---|
| Impedance (Ohm) | 50 |
| Radiation Pattern | Omnidirectional |
| FREE SPACE ELECTRICAL, 10W MAX POWER | |
| Bands | 2.4 GHz WiFi 5.8 GHz WiFi 7.1 GHz WiFi 6 |
| Frequency (MHz) |
2400-2500 5150-5850 5925-7125 |
| Efficiency (%) (Straight / Bent) |
76.7 / 75.9 87.5 / 82.1 75.8 / 80 |
| Peak Gain (dBi) (Straight / Bent) |
2.8 / 2.7 23.6 / 2.8 4.1 / 3.4 |
| 30X30CM GROUND PLANE EDGE ELECTRICAL, 2W MAX POWER | |
| Frequency (MHz) |
2400-2500 5150-5850 5925-7125 |
| Efficiency (%) (Straight / Bent) |
48.4 / 41.5 38.4 / 35.5 27 / 25.7 |
| Peak Gain (dBi) (Straight / Bent) |
3.3 / 3 5.1 / 5.2 4.4 / 4.6 |
| MECHANICAL STUFF | |
| Connector Type | RP-SMA (M) |
| Antenna Length | 62.3mm |
| Weight | 6g |
| Casing | POM |
| Color | White/Black |
| MECHANICAL STUFF | |
| Operational Temperature | -40°F to 185°F -40°C to 85°C |
| Storage Temperature | -40°F to 185°F -40°C to 85°C |
| Operational Temperature | Non-condensing 149°F 95% RH Non-condensing 65°C 95% RH |
GPS Antenna
| ELECTRICAL STUFF | |
|---|---|
| Impedance (Ohm) | 50 |
| Radiation Pattern | Omnidirectional |
| FREE SPACE ELECTRICAL, 10W MAX POWER | |
| Bands | BeiDuo GPS/GAILEO GLONASS |
| Frequency (MHz) |
1561 1575.42 1602 |
| Efficiency (%) (Straight / Bent) |
33.89 / 29.48 60.02 / 31.17 58.05 / 34.02 |
| Peak Gain (dBi) (Straight / Bent) |
-0.79 / -0.82 -0.55 / -0.59 -0.23 / -0.16 |
| FREE SPACE ELECTRICAL, 10W MAX POWER | |
| Bands | BeiDuo GPS/GAILEO GLONASS |
| Frequency (MHz) |
1561 1575.42 1602 |
| Efficiency (%) (Straight / Bent) |
61.66 / 56.19 60.02 / 54.96 58.05 / 53.33 |
| Peak Gain (dBi) (Straight / Bent) |
2.26 / 2.04 2.15 / 1.91 2.21 / 1.79 |
| MECHANICAL STUFF | |
| Connector Type | SMA (M) |
| Antenna Length | 72mm |
| Weight | 6g |
| Casing | POM |
| Color | Orange |
| MECHANICAL STUFF | |
| Operational Temperature | -40°F to 185°F -40°C to 85°C |
| Storage Temperature | -40°F to 185°F -40°C to 85°C |
| Operational Temperature | Non-condensing 149°F 95% RH Non-condensing 65°C 95% RH |
